Sprockets are very important to machinery because they transfer rotary motion between shafts. This makes them necessary parts in many industrial settings. Selecting the right sprocket ensures efficiency, longevity, and optimal performance. This guide explores different types of sprockets available in the market, their applications, and key considerations for selecting the right one.

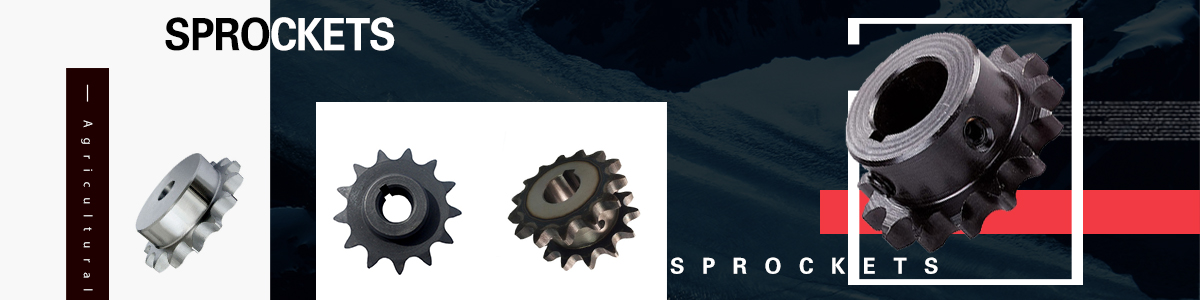

Various Types of Sprockets for Sale

There are multiple types of sprockets available, each designed to meet specific machinery requirements.

China Finish Bore Sprockets

  • Pre-drilled and finished with keyways and set screws
  • Ready for immediate installation

China Plate Sprockets (Plate Wheel Sprockets)

  • Feature flat plates without hubs
  • Commonly used in conveyor systems

China Idler Sprockets

  • Reduce chain slack and improve chain longevity
  • Utilized in situations where maintaining tension is essential

China Double Pitch Sprockets

  • Designed for double-pitch roller chains
  • Ideal for low-speed, high-load applications

China Hole Sprockets (Standard Bore Sprockets)

  • Designed for standard roller chains
  • Common in general industrial applications

China Conveyor Sprockets

  • Used in conveyor systems for material handling
  • Available in various bore configurations

China Taper Lock Sprockets (Bushed / Taper Lock Sprockets)

  • Feature taper bushings for easy installation and removal
  • Provide a secure fit and reduce maintenance efforts

China Double Row Sprockets

  • Used for double-strand roller chains
  • Increase power transmission efficiency

China QD Sprockets (Quick Detachable Sprockets)

  • Allow for quick replacement and easy installation
  • Used in industrial drive applications

China Flat Top Sprockets

  • Designed for tabletop chains in conveyor systems
  • Available in different materials for specific applications

Welded on hub sprockets

  • Feature a welded hub for extra strength
  • Suitable for high-torque applications

China Stainless Steel Sprockets

  • Corrosion-resistant, making them ideal for food processing and marine environments

China Plastic Sprockets

  • Lightweight and corrosion-resistant
  • Used in environments where metal sprockets are not suitable

Steel Sprockets

  • Durable and suitable for heavy-duty applications
  • Available in various configurations

Cast Sprockets

  • Made using casting processes for large chain wheels
  • Commonly used in industrial and heavy machinery applications

Cast Sprockets Manufacturing Process

The sprocket body is usually made by casting ZG310-570 material, which is how most large chain wheels are made. After casting, the sprocket body undergoes annealing, normalizing, and tempering heat treatment, as well as processing screw holes. The bolt is then installed with the wheel body of the bucket wheel machine mechanism, and the sprocket teeth are processed on a large gear milling machine. Finally, the tooth surface undergoes quenching.

Common cast sprockets include:

  • Scraper Conveyor Cast Sprocket
  • Scraper Conveyor Sprocket
  • Bucket Elevator Sprocket
  • Boiler sprocket for fire grate slag removal
  • Hoist Sprockets
  • Cast Iron Sprocket

Standard Sprockets

European Standard Sprockets

  • Standard Sprockets and Plate Wheels
  • Finished Bore Sprockets (06B, 08B, 10B, 12B, 16B)
  • Taper Bore Sprockets (06B, 08B, 10B, 12B, 16B, 20B)
  • Stainless Steel Sprockets
  • Idler Sprockets
  • Plate Wheels for Conveyor Chains

American Standard Sprockets

  • ANSI-Certified Roller Chain Sprockets
  • Double Pitch Sprockets
  • Single Double Sprockets
  • Stainless Steel Sprockets
  • Idler Sprockets
  • Chain Coupling Sprockets
  • Engineer Class Sprockets
  • Aluminum Roller Chain Sprockets
  • Metric Roller Chain Sprockets
  • Weld-on Hubs and Weld-on Sprockets

Japanese Standard Sprockets

  • K Standard Sprockets A Type (K25A, K35A, K40A, etc.)
  • NK Standard Sprockets B Type (NK11SB, NK15B, NK25B, etc.)
  • High-Grade Hardened Teeth Sprockets
  • Double Pitch Sprockets
  • Stainless Steel Sprockets

Agricultural Sprockets

  • AH101340 Drive Sprocket for John Deere Row Crop Heads
  • Z11690 Straw Walker Sprocket for John Deere Combine
  • Gathering chain drive sprockets
  • Various models for New Holland and Case-IH Combines

Non-Standard Customized Sprockets

For specialized applications, custom sprockets are available. These can be made from various materials, including:

  • Low Carbon Steel, C45, 20CrMnTi, 42CrMo, 40Cr, Stainless Steel
  • Surface treatments: Blacking, Galvanization, Chroming, Electrophoresis, Color Painting
  • Heat treatments: High-Frequency Quenching, Hardened Teeth, Carbonizing, Nitriding

Choosing the right sprocket

When selecting a sprocket, consider the following factors:

  • Chain Compatibility– Ensure the sprocket matches the chain size and pitch.
  • Material– Choose the appropriate material based on environmental conditions (e.g., stainless steel for corrosion resistance).
  • Load and Torque Requirements– Select a sprocket that can handle the expected load and torque.
  • Bore Type– Determine if a finished bore, taper bore, or pilot bore is required.
  • Number of Teeth– More teeth provide smoother operation but may require a larger installation space.
  • Application-Specific Needs– Consider industry standards and operational efficiency when choosing a sprocket.

Reliable Sprocket Manufacturer

HZPT (Hangzhou Ever-Power Transmission) is a prominent manufacturer and supplier of sprockets, providing a diverse range of products.

  • Gears, worm gears, flanges, gear racks, spur gears, helical gears, and more
  • Customization services for special sprockets
  • High-quality industrial wheels and components

With a focus on quality and customer satisfaction, HZPT ensures precision engineering and durability in all its products.

What is a Sprocket?

A sprocket is a grooved wheel with teeth that mesh with links to transfer motion. Machinery uses these wheels to convey heavy loads, and they come in various designs and sizes. Transmission equipment, conveyor systems, and bicycles commonly use these wheels. Sprockets come in many shapes and sizes and are made from cast iron, mild steel, stainless steel, or aluminum. They can be roller chain sprockets, multi-strand sprockets, or hubbed sprockets for extra stability.

Conclusion

Selecting the right sprocket is essential for the efficiency and longevity of your machinery. Whether you need standard, specialty, or custom sprockets, understanding the different types available and their applications will help you make an informed decision. Choose a reliable manufacturer like HZPT to ensure high-quality and durable sprockets tailored to your needs.
